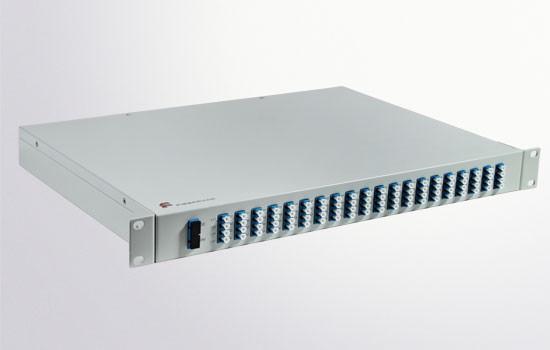

48 Channels Thermal Arrayed Waveguide Grating , Mux Demux TAWG Module

Fiberroad Technology Co., Limited

48 Channels Thermal Arrayed Waveguide Grating , Mux Demux TAWG Module

  • 1
  • 2

Brand Name : Fiberroad

Model Number : FR-6000S-TAWGxx-x

Certification : ISO9000, CE, FCC, ROHS

Place of Origin : China

MOQ : 1 PCS

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Packaging Details : Standard neutral or brand packing

Insertion Loss : 1.5dB

Channels : 40CH

Parameter : Mux&demux

Channel Spacing : 100GHZ

Cha. Center Wavelength (nm) : C -band

Type : DWDM Multiplex

Price : Pls send request details

Delivery Time : 2-3 workdays

Contact Now

48 Channels Thermal Arrayed Waveguide Grating , Mux Demux TAWG Module

This component is designed for use within the C -band release of DWDM system. TAWG(Thermal Arrayed Waveguide Grating) device uses thermal-type thermal arrayed waveguide grating module with a unique package design is based on a silicon substrate planar waveguide optical path (PLC) grating technology, the key modules, reduce power consumption, the Ad Hoc Working Group kit, use reliable thermal plastic , low thermal conductivity and precise working temperature control, accurate channel coupling, low insertion loss, high channel isolation and high stability.

Key Features

  • Channel spacing 100GHZ (0.8 nm) up to 48 channels can be multiplexed;
  • Low insertion loss, insertion loss ≤5dB, typically 4.5dB
  • High channel isolation, adjacent isolation ≥25dB; non-adjacent isolation ≥35dB
  • High stability, dual hot-swappable power supply, 1 +1 protection;
  • Perfect indicator status;
  • Powerful network management capabilities to support SNMP, Web, telnet network management, network management GUI-based graphical interface, friendly interface;

Specifications

Parameters

Min

Typ

Max

Units

Number of Channels

40

Number Channel Spacing

100

GHz

Cha. Center Wavelength

C -band

nm

Clear Channel Passband

±0.1

nm

Wavelength Stability

±0.05

nm

-1 dB Channel Bandwidth

0.4

nm

-3 dB Channel Bandwidth

0.6

nm

Optical Insertion Loss at ITU grid

4.5

6.0

dB

Adjacent Channel Isolation

Demux

25

dB

Mux

18

Non-Adjacent,Channel Isolation

Demux

32

dB

Mux

26

Insertion Loss Uniformity

1.5

dB

Directivity(Mux Only)

40

dB

Insertion Loss Ripple

0.5

dB

Optical Return loss

40

dB

PDL/Polarization Dependent Loss in Clear Channel Band

0.3

0.5

dB

Polarization Mode Dispersion

0.5

ps

Maximum Optical Power

24

dBm

Environment

Operating Temperature

-5℃~+75℃

Storage Temperature

-40℃~85℃

Relative humidity

5% ~ 95%( non-condensing)

Power supply

180V~240V/AC,-36V~-72V/DC

Safety and EMC

ompliance with FCC, UL, CE, TUV, CSA

Power Consumption

≤25W

Package Dimension (mm)

440(W)× 44(H)×340(D)

Order Information

P/N

Description

x

x

X(Channel Spacing)

FR-6000S-TAWGxx-x

Hot-type AWG

32=32CH

40=40CH

48=48CH

S:unidirectional

(single fiber Bidirectional)

(Nil):two-fiber unidirectional

25G

50G:

100G

FR-6000S-AAWGxx-x

Athermal AWG
